Mimaki Printhead GEN5 (MH5420/5440) For Mimaki JFX500-2131 & UJV500-160 printers
Mimaki Printhead GEN5 (MH5420/5440) For Mimaki JFX500-2131 & UJV500-160 printers
Mimaki Printhead GEN5 (MH5420/5440) For Mimaki JFX500-2131 & UJV500-160 printers
Mimaki Printhead GEN5 (MH5420/5440) For Mimaki JFX500-2131 & UJV500-160 printers

Mimaki Printhead GEN5 (MH5420/5440) For Mimaki JFX500-2131 & UJV500-160 printers

0 reviews
$1,384.00
Brand:
Product Code: MTA1715652
Availability: In Stock
Viewed 476 times

Product Description

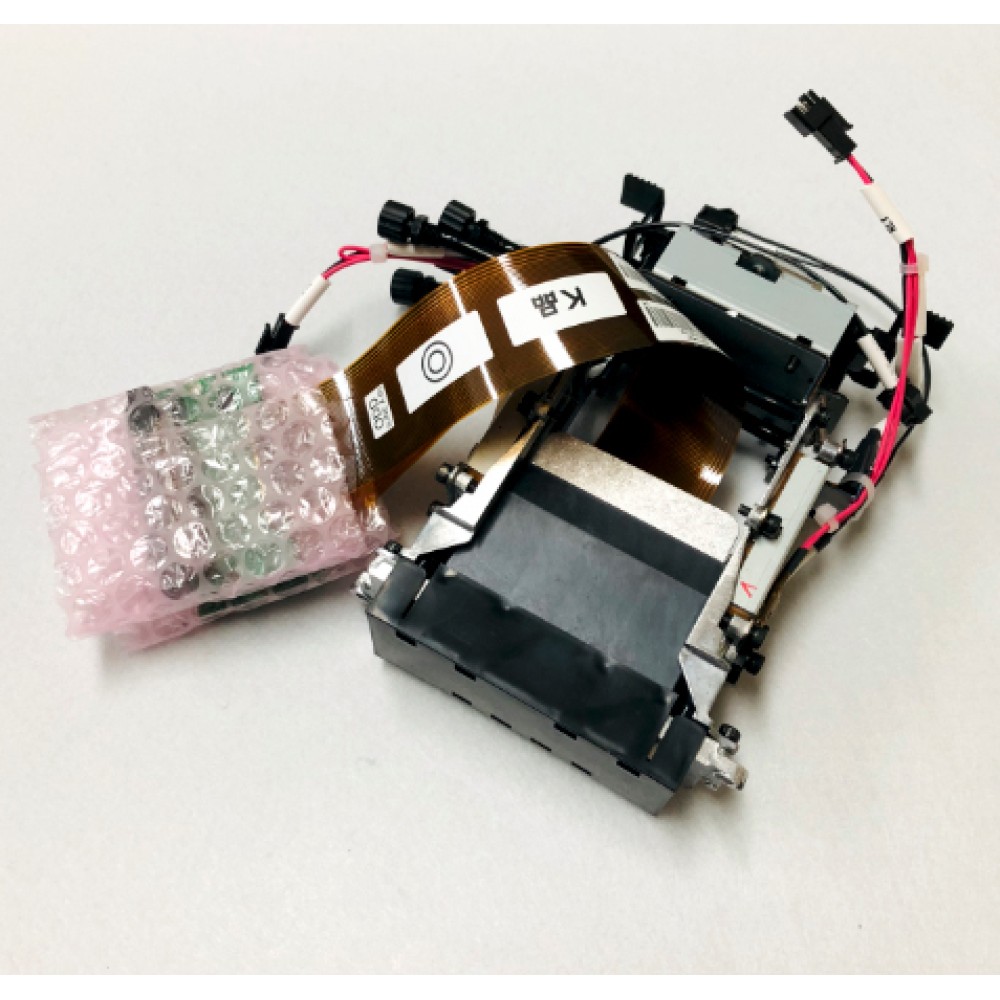

This original mimaki printhead GEN5 (MH5420/5440) is suitable for Mimaki JFX500-2131 & UJV500-160 printers. It has two and four color support, 8 levels of grayscale and up to 600 dpi nozzle density. This is the original Mimaki part (number M022626 replacing M015068/M013497).

Specifications  :

  • Dimensions: 89 x 25 x 69 mm (excluding cables)
  • Head materials: SST, Nickel alloy and Epoxy Adhesive
  • Nozzle plate surface: Coated SST
  • Number of nozzles: 4 x 320 nozzles
  • Nozzle spacing: 0.1693 mm
  • Nozzle density: up to 600 dpi
  • Piezo type: D33 Stacked PZT
  • Temperature control: Integrated Heater and Thermistor
  • Operator temperature range: Up to 80° C
  • Native drop volume: 7 pl
  • Drop volume range: 7 – 35 pl
  • Drop velocity: 7 m/s
  • Jetting frequency: Up to 60 kHz
  • Life: 100 billion actuations per nozzle


Compatible Printers:

Mimaki
  • JFX500-2131
  • UJV500-160
  • UJV55-320
  • SIJ-320UV
  • SWJ-320EA
