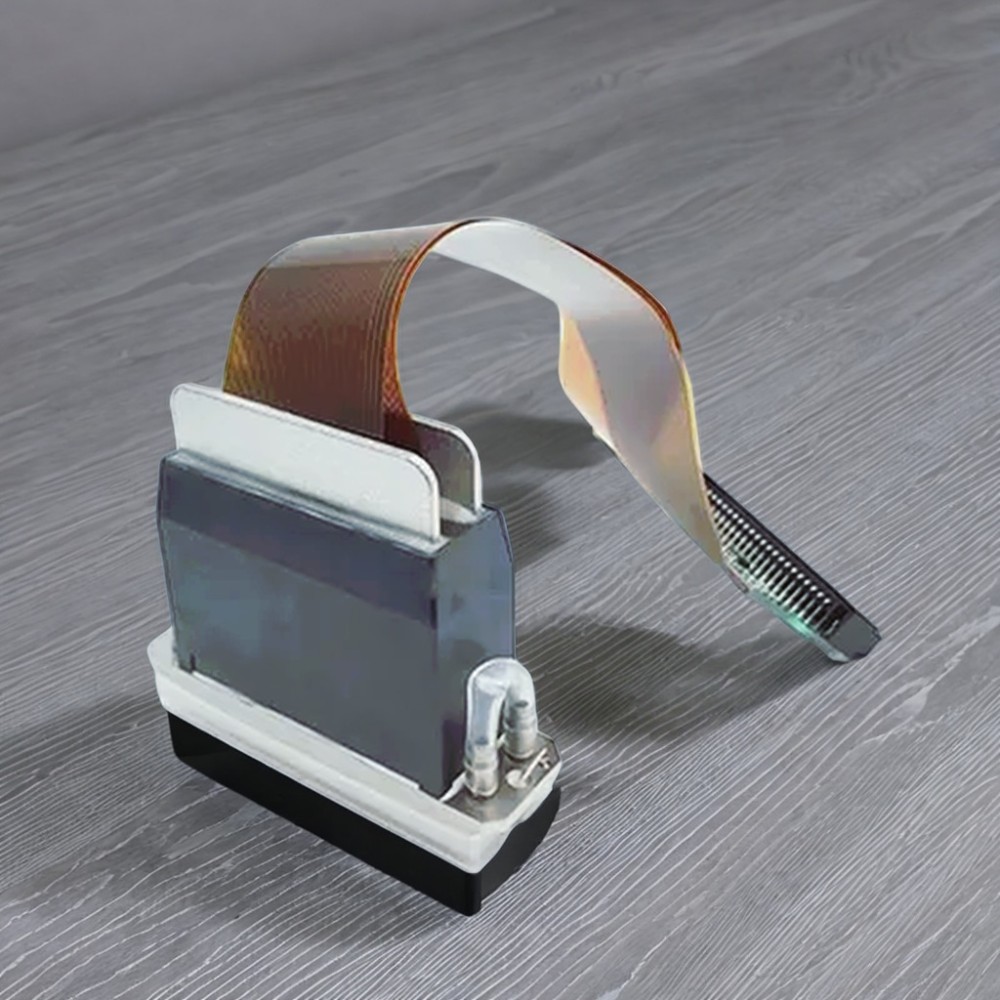

Ricoh – MH5421F GEN5 Printhead

0 reviews

$1,695.50

Brand: RICOH

Product Code: MTA0231101

Availability: In Stock

Viewed 428 times

Qty

Add to wishlist
Add to compare

Tags: Ricoh – MH5421F GEN5 Printhead

Description
Reviews (0)

Product Description

This MH5421 Ricoh printhead offers high-resolution, print and supports for multiple ink colors with multi-row nozzles also enhanced aqueous ink compatibility with new bonding technology.

Product Specifications


Method	Piston pusher with metallic diaphragm plate
Ink circulation structure	○
Print width	54.1mm
Number of nozzles	1280 (4 x 320 channels), staggered
Nozzle spacing	1/150″ (0.1693mm)
Nozzle spacing (Row to row distance)	A : 0.55mm B : 11.81mm (See illustration below)
Max. number of color inks	2colors
Compatible ink	UV, Solvent, Aqueous, others
Operating temperature range	Up to 60℃
Temperature control	Integrated heater and thermistor
Jetting frequency	30kHz
Drop volume	7/14/21pl (depending on the ink)
Viscosity range F/MF	11mPa・s
Gray-scale	4 levels (depending on the ink characteristic)
Separately sold parts	RICOH MH5421F / MH5421MF dedicated cable
Total printhead dimensions.	89(W) × 64.2(D) × 24.5(H) mm (3.5″ × 2.7″ × 1.0″)
Weight	149g
