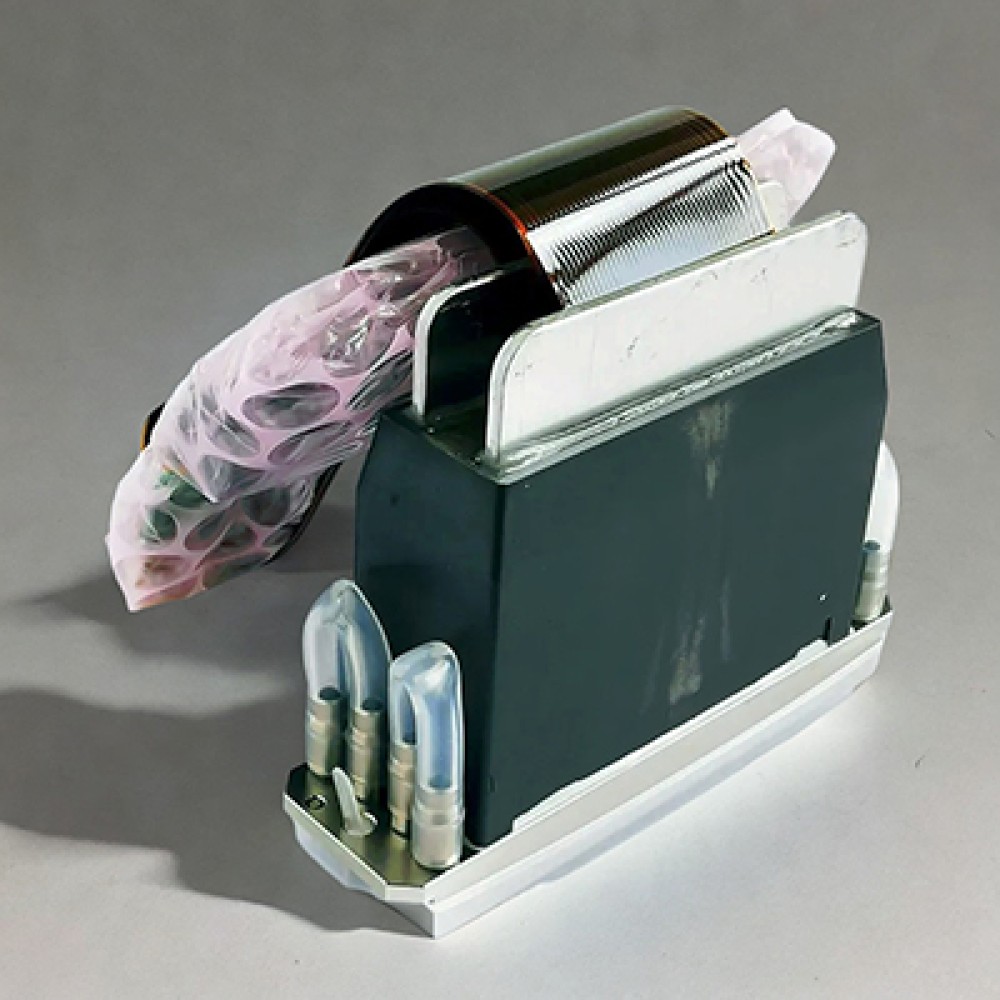

Ricoh GEN5 MH5440 Printhead
Ricoh GEN5 MH5440 Printhead
Ricoh GEN5 MH5440 Printhead
Ricoh GEN5 MH5440 Printhead

Ricoh GEN5 MH5440 Printhead

0 reviews
$1,130.00
Brand:
Product Code: MTA0231106
Availability: In Stock
Viewed 405 times

Product Description

This Ricoh GEN5 Printhead is suitable for a range of UV, Solvent, and Aqueous-based printers.

With 1,280 nozzles configured in 4 x 150dpi rows, this head achieves high-resolution 600dpi printing. Additionally, the ink paths are isolated, enabling a single head to jet up to four ink colors. It achieves excellent gray-scale rendering with up to 4 scales per dot.

Product Specifications :

  • Method:  Piston pusher with a metallic diaphragm plate
  • Print Width: 54.1 mm (2.1″)
  • Number of nozzles: 1,280 (4 × 320 channels), staggered
  • Nozzle spacing (4 color printing): 1/150″(0.1693 mm)
  • Nozzle spacing (row to row distance): 0.55 mm
  • Nozzle spacing (Upper and lower swath distance): 11.81mm
  • Max. number of color inks: 4 colors
  • Operating temperature range: Up to 60℃
  • Temperature control: Integrated heater and thermistor
  • Jetting frequency: Binary mode : 30kHz / Grey-scale mode : 20kHz
  • Drop volume: Binary mode: 7pl / Grey-scale mode : 7-35pl *depending on the ink
  • Viscosity range: 10-12 mPa•s
  • Surface tension: 28-35mN/m
  • Grey-scale: 4 levels
  • Total Length: 248 mm (standard) including cables
  • Dimensions: 89 x 25 x 69 mm (excluding cable)
  • Number of ink ports: 4 × dual ports
  • Alignment pin direction: Front (standard)
  • Ink compatibility: UV, Solvent, Aqueous, Others.
