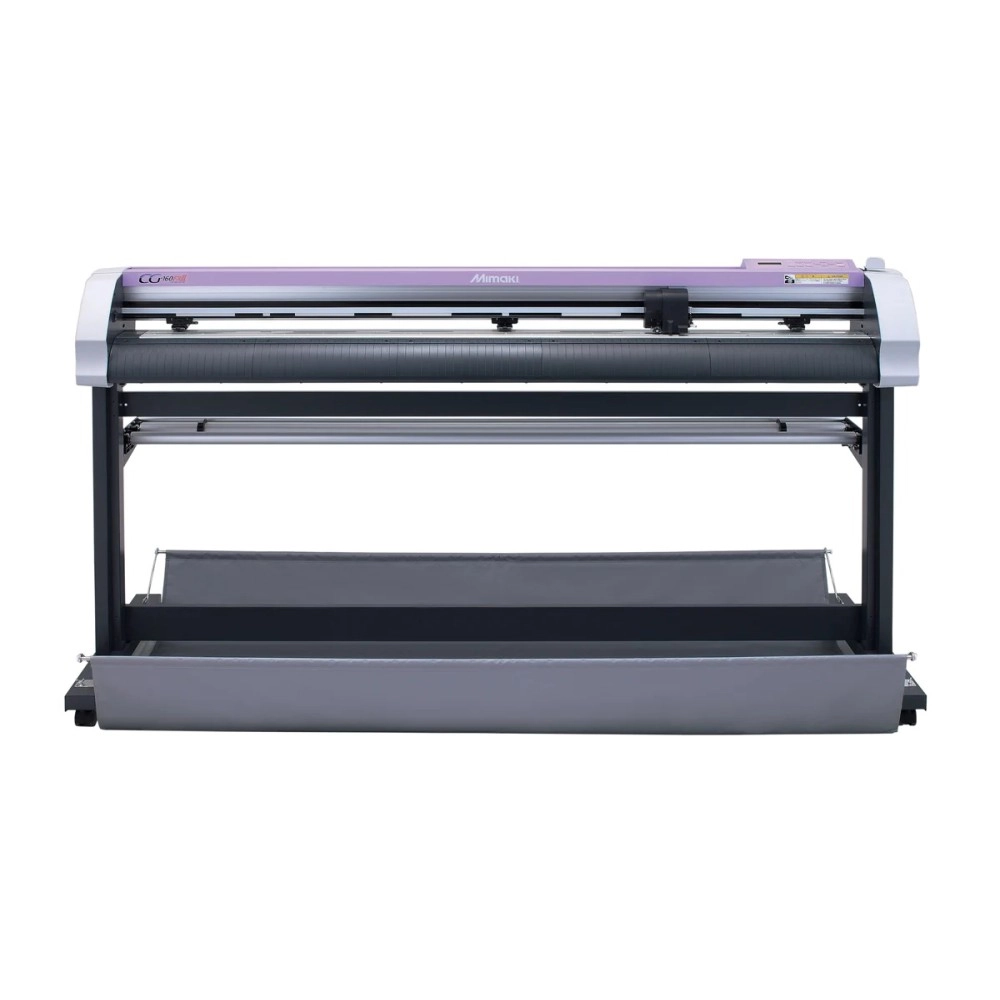

Mimaki CG Series Cutter
Mimaki CG Series Cutter
Mimaki CG Series Cutter
Mimaki CG Series Cutter
Mimaki CG Series Cutter
Mimaki CG Series Cutter

Mimaki CG Series Cutter

0 reviews
$863.00
Brand:
Product Code: MTC0923101
Availability: In Stock
Viewed 328 times

Available Options

Product Description

Mimaki is proud to offer a range of vinyl cutter plotters that can meet a wide range of application needs. Each is capable of large format printing and high precision thanks to features like continuous crop mark detection and Mimaki’s proprietary half-cut function. Combining high performance and easier handling, each precision cutter can create printed labels, graphics, signage, clothing, and stickers.

Here is an overview of each vinyl cutting machine we offer; each series features three highly functional models.

In addition to three selectable job speeds, each large vinyl cutter we offer can be loaded from the front or back and works with our roll-to-roll printers. Our Mimaki vinyl cutters have FineCut9 software included (the CG-SRIII Series includes Simple Cut software as well).



CG-SRIII Series

CG-FXII Plus Series

Sheet Width

Up to 29.1”, 49.2”, or 61.0”

3.54”~40.9”, 3.54”~62.0”, or 3.54”~74”

Cutting Area

Up to 23.9” x 167.3’, 42.1” x 167.3’, or 53.9” x 167.3’

29.9” x 167’, 51.2” x 167’, or 62.9” x 167’

Maximum Speed (Cutting/Moving)

27.6”/s / 39.4”/s

39.3”/s / 55”/s (in 45° direction and pen-up state)

Adjustable Cutting Speed Range

0.4 - 3.9”/s (0.4”/s step adjustment or
0.4 - 27/6”/s (2.0”/s step adjustment)

0.39”-3.94”/s: 0.39” step adjustment
3.94”-19.68”/s: 2” step adjustment
19.68”-39.37”: 3.94 step adjustment

Mechanical Resolution

X direction: 2.5 ųm
Y direction: 5 ųm

5 ųm

Acceptable Sheet

Vinyl, fluorescent type vinyl, reflective, rubber

Vinyl up to 0.01” thickness, fluorescent type vinyl, or reflective sheet

Dimensions (WxDxH)

40.6 x 16.9 x 13.2” or 40.6 x 16.9 x 46.7”
60.2 x 22.8 x 45.3”
72.0 x 22.8 x 45.3”

50.5” x 27.5” x 47.9”
71.8” x 27.5” x 47.9”
83.6” x 27.5” x 47.9”

Weight

52.9, 90.4, or 101.4 pounds

104, 137, or 154 pounds

Interface

USB 2.0, RS-232C, Ethernet

RS-232C, USB


Type 

Roll-based cutting plotter ⁧⁧

Maximum Media Width 

CG-60SRIII: 29.1″ (740 mm)
CG-100SRIII: 49.2″ (1250 mm)
CG-130SRIII: 61″ (1550 mm)
CG-130FXII: 62.2″ (1580 mm)
CG-160FXII: 74″ (1880 mm)
CG-130FXII Plus: 62″ (1580 mm)
CG-160FXII Plus: 74″ (1880 mm)

Cutting Width

CG-60SRIII: 23.8″ (600 mm)
CG-100SRIII: 42.1″ (1070 mm)
CG-130SRIII: 53.9″ (1370 mm)
CG-130FXII: 51.2″ (1300 mm)
CG-160FXII: 62.9″ (1600 mm)
CG-130FXII Plus: 51.2″ (1300 mm)
CG-160FXII Plus: 62.9″ (1600 mm)

Maximum media thickness 

Recommended sheets up to 0.01″ (.25mm) including laminate and liner; Up to 0.04″ (1mm) max (results may vary)

Maximum Cut Speed 

CG-SRIII Series: 27.6″ (700 mm)
CG-FXII Series: 39.4″ (1000 mm)
CG-FXII Plus Series: 39.3″ (1000 mm) per second

Moving speed second

CG-SRIII Series: 39.4″ (1000 mm)
CG-FXII Series: 55.0″ (1400 mm)
CG-FXII Plus Series: 55″ (1400 mm) per second

Maximum Cut pressure (Metric grams)

500g

Adjustable speed range

CG-SRIII Series:
1-10cm/s: 1cm/s step adjustment
1-70cm/s: 5cm/s step adjustment
CG-FXII Series & CG-FXII Plus Series:
1-10cm/s: 1cm/s step adjustment (0.39 in-3.94 in/s: 0.39 in step adjustment)
10-50cm/s: 5cm/s step adjustment (3.94 in-19.68 in/s: 2 in step adjustment)
50-100cm/s: 10cm/s step adjustment (19.68 in-39.37 in: 3.94 in step adjustment)

Cutter Types

Eccentric cutter, Blade for small character, Blade for reflective sheet, Blade for fluorescent sheet, Blade for PVC with low-pressure, Ball point pen.

Mechanical resolution

CG-SRIII Series: X direction: 2.5 μm; Y direction 5 μm
CG-FXII Series & CG-FXII Plus Series: 5 μm (0.0002 in)

Program steps

CG-SRIII Series: 25 μm or 10 μm (MGL-IIc); 100 μm, 50 μm (MGL-Ic1)
CG-FXII Series & CG-FXII Plus Series: 25 μm or 10 μm (MGL-IIc) or 0.0004 in

Repeatability

CG-SRIII Series: +/- 0.2 mm / 2 M
CG-FXII Series & CG-FXII Plus Series: +/- 0.2 mm

Downforce pressure 

CG-SRIII Series:
Cutter: 10-20g (2g step), 20-100g (5g step), 100-500g (10g step)
Pen: 10-20g (2g step), 20-100g (5g step), 100-150g (10g step)
CG-FXII Series & CG-FXII Plus Series:
Cutter: 10-20g (2g step), 20-100g (5g step), 100-500g (10g step)
Pouncing: 10-20g (2g step), 20-100g (5g step), 100-500g (10g step)
Pen: 10-20g (2g step), 20-100g (5g step), 100-150g (10g step)

Command

CG-SRIII Series: MGL-IIc, MGL-Ic1
CG-FXII Series & CG-FXII Plus Series: MGL-IIc

Interface

USB2.0, RS-232C, Ethernet

Receive buffer

CG-SRIII Series: 27MB standard, 17MB when sorting
CG-FXII Series & CG-FXII Plus Series: 30MB standard, 20MB when sorting

Power supply

CG-60SRIII: Single-phase (AC 100–120V / AC 220–240V)
CG-100SRIII, CG-130SRIII, CG-130FXII & CG-160FXII: Single-phase (AC 100–120V / AC 220–240V), 145 VA or less
CG-160FXII Plus: AC100V-240V, 50/60 Hz

Power consumption

145 VA or less

Operational Environment

Operational Temperature 41° – 95° F
Operational Humidity: 35–75 % RH (Non condensing)

Dimensions (W × D × H)

CG-60SRIII: 40.6″ x 16.9″ x 13.2″ (103.1 x 42.9 x 33.5 cm)
CG-100SRIII: 60.2″ x 22.8″ x 45.3″ (152.9 x 57.9 x 115.1 cm)
CG-130SRIII: 72.0″ x 22.8″ x 45.3 (182.9 x 57.9 x 115.1 cm)
CG-130FXII & CG-130FXII Plus: 71.8″ x 27.5″ x 47.9″ (182.4 x 69.9 x 121.7 cm)
CG-160FXII & CG-160FXII Plus: 83.6″ x 27.5″ x 47.9″ (212.3 x 69.9 x 121.7 cm)

Weight

CG-60SRIII: 52.9 lbs. (24 kg)
CG-100SRIII: 90.4 lbs. (41 kg)
CG-130SRIII: 101.4 lbs. (46 kg)
CG-130FXII: 132 lbs. (60 kg)
CG-160FXII: 152 lbs. (69 kg)
CG-130FXII Plus: 137 lbs. (62 kg)
CG-160FXII Plus: 154 lbs. (70 kg)
