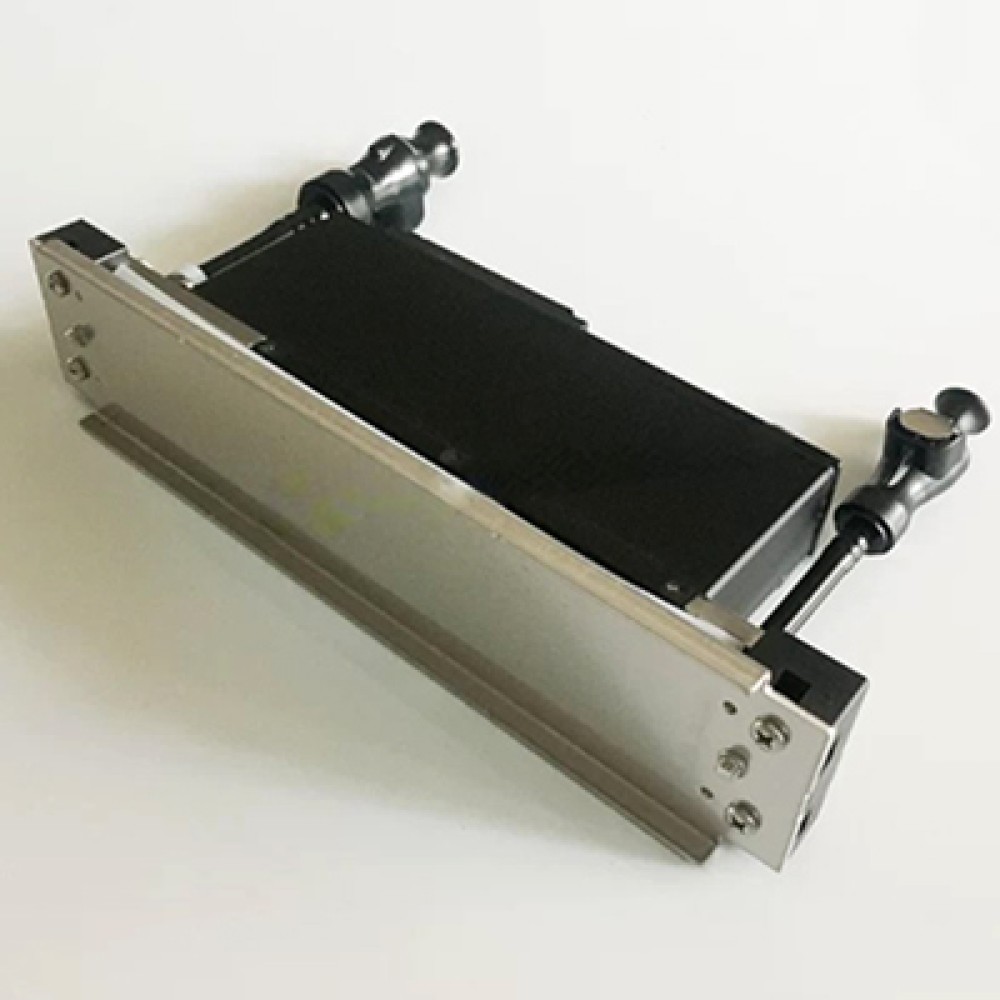

Kyocera KJ4A-RH UV Printhead
Kyocera KJ4A-RH UV Printhead
Kyocera KJ4A-RH UV Printhead
Kyocera KJ4A-RH UV Printhead

Kyocera KJ4A-RH UV Printhead

0 reviews
$3,048.50
Brand:
Product Code: MTA0111258
Availability: In Stock
Viewed 426 times

Product Description

This new generation Kyocera KJ4A-RH is designed for high speed single-pass and multi-pass applications with printers using UV ink. It is a 600dpi one colour printhead with a maximum drive frequency of 30kHz. It delivers high quality with a small drop volume of 5pl at 70 m/min by making use of 2,656 nozzles arranged across 108 mm wide print swathe with 0.042mm pitch, resulting in 30.000 drops per second.
The Kyocera KJ4A-RH is equipped with internal filters that eliminate foreign objects in ink and an internal heater that adjusts the impact of external temperatures. It’s unique ink channel design provides a stable ink supply.

Specifications
  • Ink Type: UV Ink
  • Dimensions: 200 × 30 × 68.9mm
  • Dry Weight: 420g
  • Total Nozzles:2.656
  • Nozzle Pitch: 0.042mm
  • Standard Resolution: 600 x 600dpi
  • Print Width: 108.25mm
  • Max. Drive Frequency:30kHz
  • Drop Volume: 5, 7, 12 and 18pl
  • Max. Sprint Speed:70m/min
  • Input Voltage:3.3 V for logic / 29 V for driving
  • Temperature Control:Reservoir heater and thermistor are equipped


Compatible Printers

Dilli
  • Neo Sun FB2513-04 D-WX
